GREAT PDC bits run in the oilfield

Oil and gas exploration is a rigorous and complex work. The discovery of new energy areas not only means the supplement and enrichment of industrial raw materials, but also means the progress of industrial development and the improvement of the overall national economy at the current level. In the actual development of oil and gas energy, the oilfield drill bits are one of the main drilling equipment. According to the different working environment and regional environment, the specifications and types of the oilfield bits can also be different.

How to Choose Approriate Oilfield Drill Bits?

Before the commencement of the oilfidle project, the type of drill bit to be used shall be determined according to the local rock structure and rock properties. Selecting a suitable oilfield drill bit will have different effects on the cost consumed by oilfield drilling, the speed of drilling engineering and the quality of drilling.

In the process of oilfield drilling, the drill bit should be selected reasonably and scientifically according to the specific needs and design schemes, so as to improve the working efficiency and quality of oil drilling. Only in this way can the oil and gas development project give better play to its own value and make certain contributions to the development of oil and gas industry.

Modern Oilfield Bits Technologies

The drilling technology level has been improved through optimized oilfield drill bit designs:

• Through various kinds of software to reasonable design of oilfield bits;

• Through the simulation test to find out the advantages and disadvantages of oilfield drill bits, and formulate the test standard of oilfield drill bit test accordingly.

GREAT DRILL BIT company has also applied for the corresponding drill design patent. Through a lot of drill bit tests, we have made a lot of oilfield drill bits research results, and developed a series of  high performance oilfield drill bits, which has played a very important role in improving the mechanical speed of the oilfield drill bits and crushing efficiency, in order to achieve the optimal effects of the oilfield drill bits.

What Are Oil Drill Bits Made Of, What Are The Suitable Oil And Gas Drill Bit Sizes, And What Is the Oil Drill Bit Design?

GREAT DRILL BIT is the industrial leading PDC bits and tricone bits manufacturer. We pruchase steel raw materials from the biggest steel material factory in China. Usually, PDC bits and roller cone bits are used as oilfield drill bits.

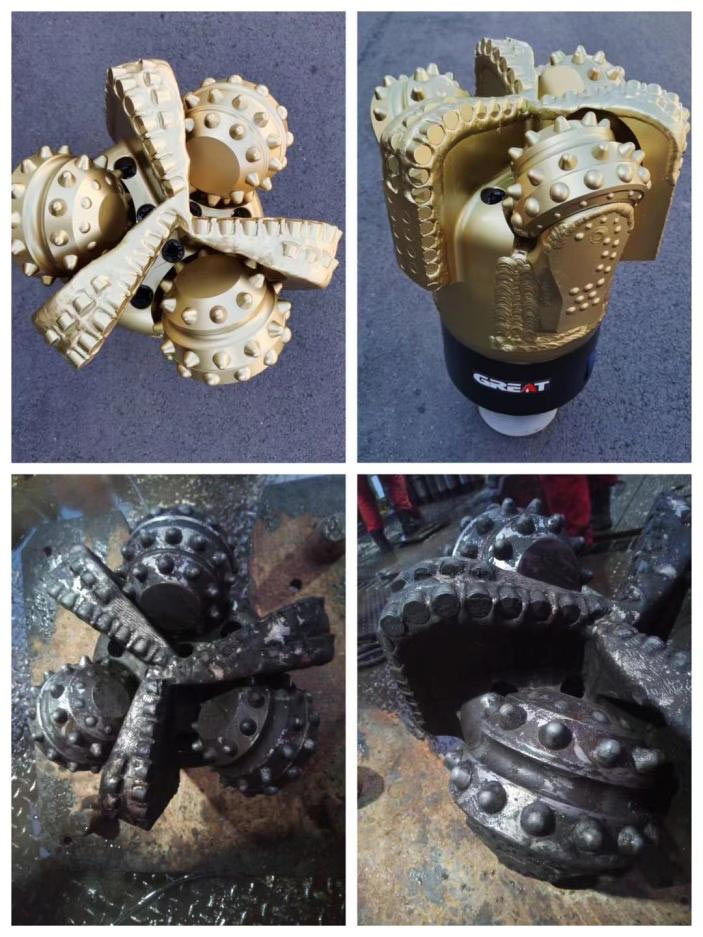

PDC Bits Materials, Sizes And Design

• AISI 4145H round steel cut by sawing machines are the raw materials of PDC bit.

• The suitable PDC bit size is from 3” to 36” in both steel and matrix body.

• By using new surface wear-resistant materials and the feature of positive and negative ions, PDC bits become more effective in preventing mud packs.

• PDC bits has been optimized structure design. Through increase the narrow area in the bit design, it can deepen the waterway, and reasonably improve the blade thickness, so as to maximize the flow area in the use of the bit and improve the chip removal ability of the bit.

• By using the bottom hole simulation and nozzle optimization design, the number and position of nozzles can be reasonably arranged to prevent mud balling more effectively.

Roller Cone Bit Materials, Sizes And Design

• About the steel material of roller cone bit, the 15MnNi4Mo steel is used for the cone of roller cone bits, and the 15CrNiMo steel is used for the palm of roller cone bits.

• The suitable sizes of tricone bit is from 4 ¾” to 36” in both TCI and Mill tooth.

• During the processing of tricone bit ,the precision of CNC lathes is ±0.01mm , it can meet all the turning requirements. And after turning a certain numer of pieces, we must change the tool of lathes to make sure the precision of machine.

• Use the cobalt welding wire to hard facing the small axis, big axis on the bearing and the top of roller bits leg, to increase the abrasive resistance of roller bits.

How Are Oil Rig Drill Bit Prices Determined?

GREAT has a complete and strict quality inspection record for any oilfield drill bits from raw materials to finished products. Every process is ensured to be qualified and then the drill bit manufacturing can enter the next process, so as to ensure that every oilfield drill bit received by customers is qualified. Customer satisfaction is our final goal.

The Factors Determining PDC Bit Prices Are As Follwing, Which You Can Consider When Purchasing:

1. PDC Cutters

• We have three options for you: All PDC Cutters for the bit choose American PDC cutter;

• Key Position Cutters are American PDC cutter;

• Back row cutter and the other position are high end China Cutters;

• Key Position Cutters are Chinese best PDC bitter;

• Back row cutter and the other position are other China brands Cutters.

2. Steel Raw Material:

• Heat treatment AISI 4145H Steel,--specially for oilfield drilling bits;

• Or Heat treatment 42CrMo Steel

3. Welding Material:

• France TUF-COTE series welding rod, Fine shaped surface, high impact&wearing resistance and high erosion resistant;

• China welding rod, Cracks and air holes in hard facing, Low impact&wearing resistance, High erosion resistance;

• Non-hard facing, soft bit body, low properties.

The Factors Affecting Tricone Bit Prices:

1. steel raw material and hardfacing material;

2, alloy teeth of tricone bits.

You are welcome to inquiry GREAT BIT to learn more about our drill bit price and our pdc drill bit factory.

Good Feedbacks of Oilfield Drill Bits from GREAT BIT Customers

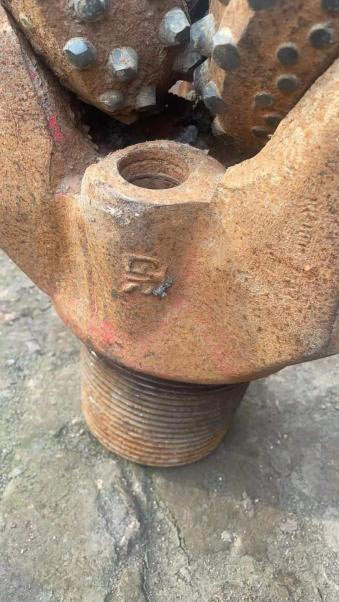

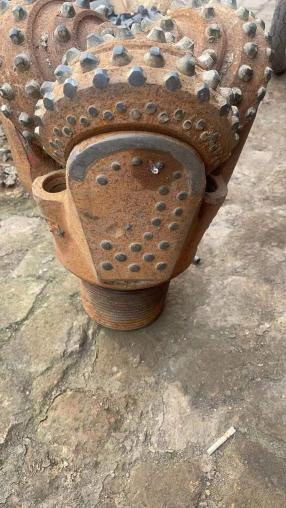

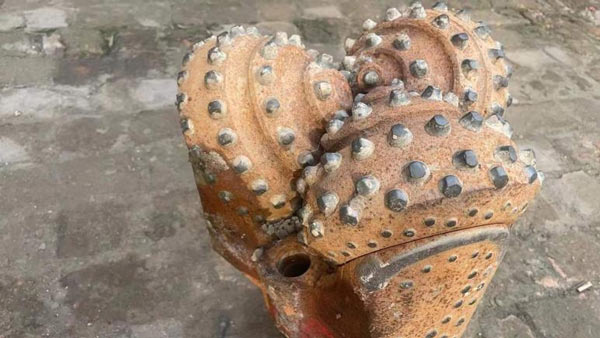

1. 12 1/4”537,3500m geothermal well, bearing in good condition and teeth wear normally, our customer is very satisfied with the result.

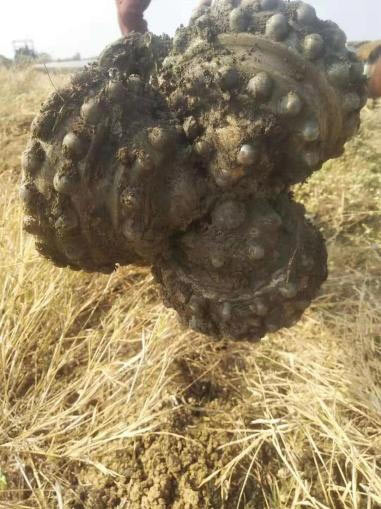

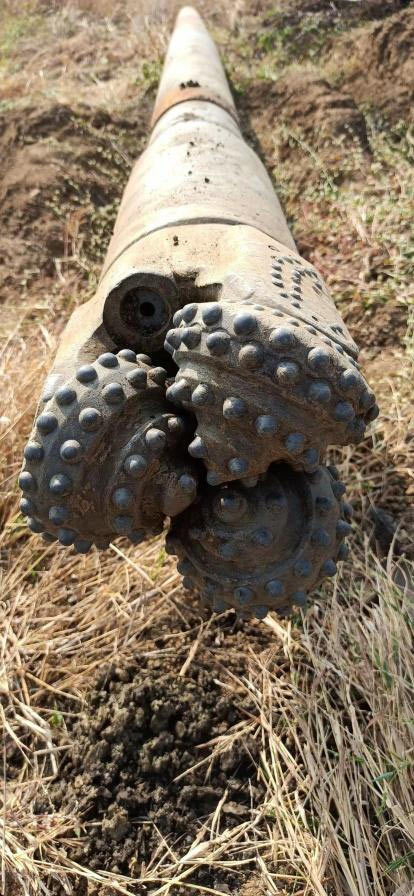

2. 9 7/8”637 tricone bit in HDD project

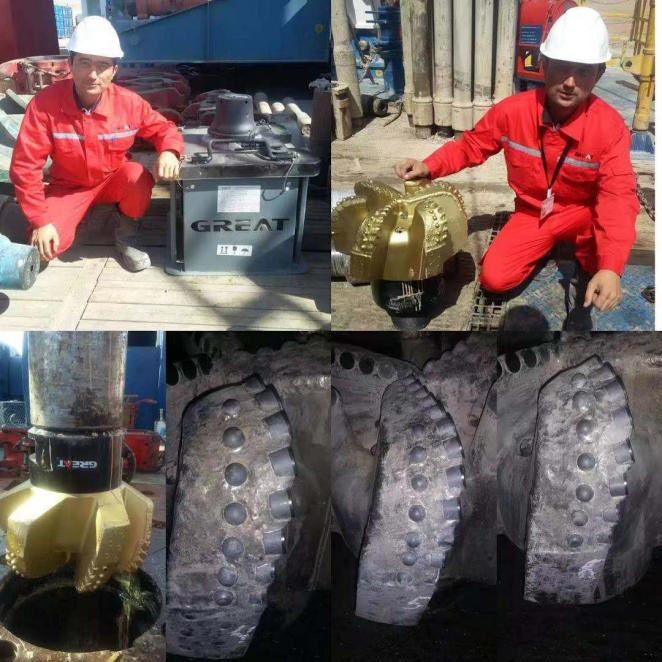

3. PDC bit feedback:

Please contact GREAT BIT for more detailed Oilfield Drill Bit informations.
